Fiberglass Insect Screen for Windows in 18×14, 18×16, 20×20, and 22×22 Mesh

ZhongPu Wire Mesh Co., Ltd. offers Fiberglass Insect Screen Mesh engineered for durable, long-term insect protection in residential, commercial, and industrial applications. Made from high-quality fiberglass yarn coated with PVC, this mesh provides excellent flexibility, corrosion resistance, and UV stability while maintaining clear visibility and airflow. Available varieties include standard insect screen, pet-resistant fiberglass screen, heavy-duty fiberglass mesh, and fire-retardant options, with common mesh sizes such as 18×16 and 20×20. Customization options include roll width and length, wire diameter, color selection (gray, black, white, and custom colors), and packaging, ensuring compatibility with windows, doors, and enclosure systems across global markets.

Fiberglass Insect Screen Types

• Standard Fiberglass Insect Screen: Common 18×16 or 20×20 mesh, wire diameter 0.28–0.33 mm, open area about 60–65%, typical roll widths 600–1500 mm and lengths 30–300 m, suitable for windows and doors with balanced airflow and visibility.
• Heavy-Duty Fiberglass Screen: Uses thicker yarn with wire diameter 0.33–0.38 mm, mesh 18×14 or 18×16, higher tensile strength and abrasion resistance, roll widths 750–1800 mm, designed for longer service life.
• Pet-Resistant Fiberglass Screen: Reinforced PVC-coated fiberglass, wire diameter 0.38–0.45 mm, mesh 15×11 or 14×11, impact-resistant structure to withstand scratching and pushing by pets.
• Fire-Retardant Fiberglass Screen: Treated with flame-retardant PVC coating, mesh 18×16 or 20×20, wire diameter 0.28–0.33 mm, compliant with basic fire-resistance requirements for public or commercial buildings.
• Sun-Control Fiberglass Screen: Medium-density mesh 18×14 to 18×16, shading rate 30–60%, wire diameter 0.30–0.35 mm, reduces glare and solar heat while maintaining ventilation.
• No-See-Um / Fine Mesh Fiberglass Screen: Tight mesh 20×20, 22×22, or 24×24, wire diameter 0.23–0.28 mm, designed to block very small insects with moderate airflow reduction.
• Colored Fiberglass Screen: Available in gray, black, white, charcoal, and custom colors, standard mesh 18×16 or 20×20, colorfast PVC coating with UV resistance for architectural matching.
• Customized Fiberglass Screen: Tailored mesh size (14×14 to 24×24), yarn diameter 0.23–0.45 mm, roll width 600–2000 mm, roll length 30–500 m, customized colors, labels, and packaging for OEM projects.

Fiberglass window Screen Images

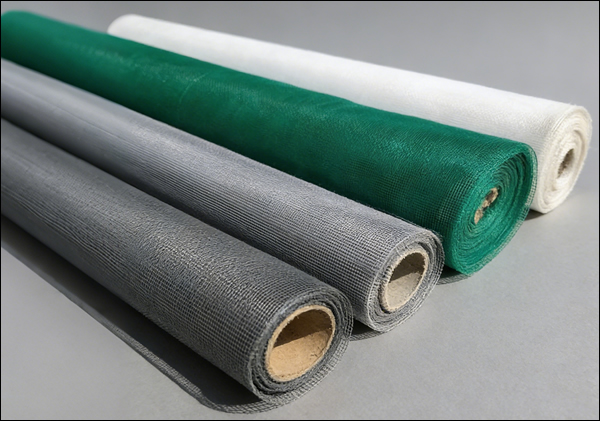

Colored Fiberglass Insect Screen Mesh Rolls for Windows and Doors

Material: PVC-coated fiberglass yarn for flexibility and corrosion resistance. Mesh Count: mesh 18×16, suitable for insect protection. Wire Diameter: 0.28–0.33 mm fiberglass yarn. Color: Green, gray, white, black, and custom colors. Roll Width: 600 mm, 900 mm, 1200 mm, 1500 mm. Roll Length: 30 m, 50 m, 100 m, up to 300 m. Open Area: 60–65% for airflow. UV Resistance: PVC coating provides UV and weather resistance. Application: Residential windows, doors, and ventilation panels. Packaging: Paper tube core with plastic film or carton packing.

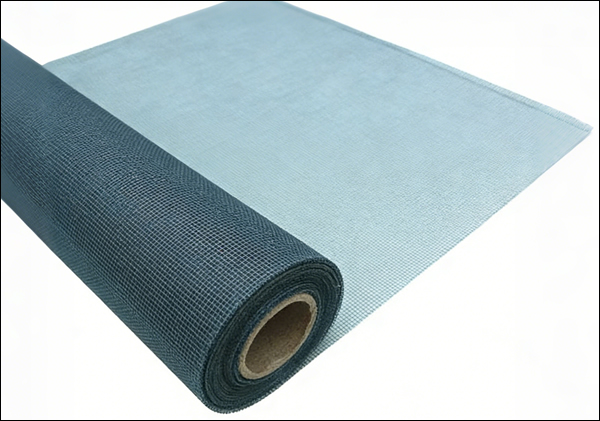

Pet-Resistant Fiberglass Insect Screen Mesh for Doors and Enclosures

Material: Reinforced PVC-coated fiberglass mesh. Mesh Count: 15×11 or 14×11 mesh. Wire Diameter: Heavy yarn 0.38–0.45 mm. Color: Black, gray, charcoal, and custom colors. Roll Width: 750 mm to 1800 mm available. Roll Length: 30–100 m standard rolls. Abrasion Resistance: Designed to resist scratching from pets. Application: Pet doors, patios, screened porches. Service Life: Longer lifespan than standard insect screens.

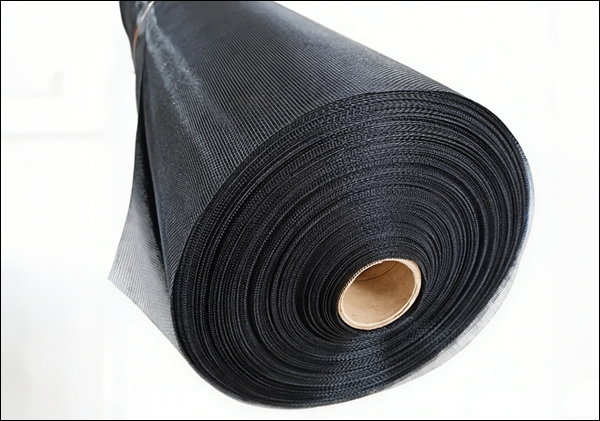

Heavy-Duty Fiberglass Window Screen Mesh for Long-Term Use

Material: Thick PVC-coated fiberglass yarn. Mesh Count: 18×14 or 18×16 heavy-duty mesh. Wire Diameter: 0.33–0.38 mm. Open Area: About 55–60% airflow rate. Roll Width: 900 mm, 1200 mm, 1500 mm standard. Roll Length: 30 m, 50 m, or customized lengths. Weather Resistance: Excellent resistance to moisture and corrosion. Dimensional Stability: Does not stretch or deform easily. Application: Commercial windows Packaging: Plastic wrapped with reinforced carton.

Fine Mesh Fiberglass Insect Screen for No-See-Um Protection

Material: PVC-coated fine fiberglass yarn. Mesh Count: 20×20, 22×22, or 24×24 fine mesh. Wire Diameter: 0.23–0.28 mm. Insect Protection: Blocks very small insects and gnats. Airflow Performance: Moderate airflow with enhanced protection. Roll Width: 600 mm to 1500 mm available. Roll Length: 30–100 m standard rolls. Color: Gray, black, white. Application: Coastal areas, kitchens, bedrooms. Surface Finish: Smooth, uniform mesh structure.

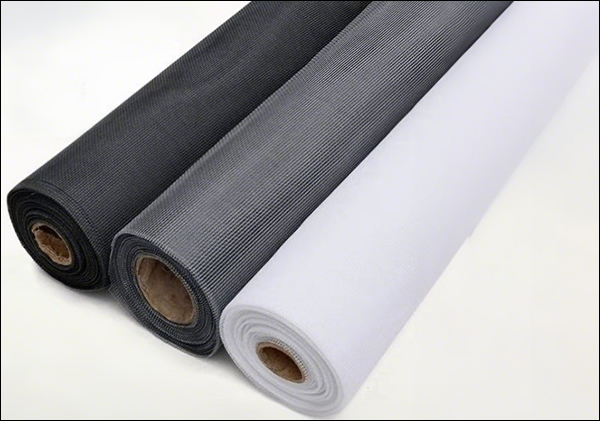

Fiberglass Insect Screen Mesh Rolls for Window Systems

Material: High-quality PVC-coated fiberglass. Mesh Count: Common 18×16 or 20×20 mesh. Wire Diameter: 0.28–0.33 mm. Roll Width: 600 mm, 750 mm, 900 mm, 1200 mm. Roll Length: 30 m, 50 m, 100 m standard. Color: Gray, black, white. UV Resistance: Suitable for outdoor exposure. Application: Windows, doors, and insect screens. Customization: OEM sizes, colors, and packaging available.
