Hook Strip Wire Screen, Shale Shaker Components Series


Add:No. 16 of Building Baoxing, Xingtai Street, New Industrial Zone, Dezhou City, P. R. China
Email:
screen@wiremesh-screen.com



Hook Strip Screen Panels , flat type and soft type, are wire mesh components for shale shakers equipment.

Hook Strip Flat Screen
Flat screens are the series applied most widely at present. These products can be fit for all kinds of shale shakers that use the hookstrip flat screen. This screen panel is constructed with two or three stainless steel layers bonded to a steel support plank. Accessary rubber plugs may be inserted to the rips or tears of the screen. By doing this, we can cut down time and the production cost. We can supply hookstrip flat screens with mesh sizes ranging from 12 to 275.

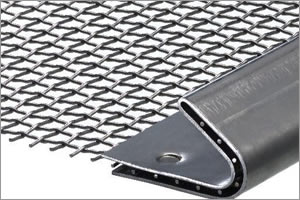

Hooked Screen for Shale Shakers

Hook strip Soft screens
Hook strip soft screens are used in the early shale shakers. The screen panel is stuck with two stainless stee wire cloth layers together. These products have low prices and are used conveniently. We can supply the screens with mesh sizes ranging from 20 to 250.

hooked strip soft screen components
Feature of hook strip soft screen
1: Hook strip soft screen is mounted on suitable shaked by hook stripe. Because it has no metal backing plate, it has more effective surface.
2: The wire of the bottom layer is much coarse . So the bottom layer can supply sieving action and at the same time, it can act as the support plate to ensure useful life.

Screen Item/Mesh No. /Dimension (Length x Width)/ Brand & Model Of Shaker /Approx Weight (Kg)
HSC-1:20-150 mesh: 600×1040mm: NCS-300*2: 1.5
HSC-2:20-150 mesh: 700×1165mm: S250: 2
HSC-3: 120-210mesh: 1400×460mm: ZCN: 2.4
HSC-4: 120-210mesh: 1000×1150mm: NS-115/2: 2.8
HSC-5: 20-80mesh: 927×914mm: JSS(U.S.A): 2.1
HSC-6: 20-80mesh: 1219×1524mm: SSS(U.S.A): 4.5
